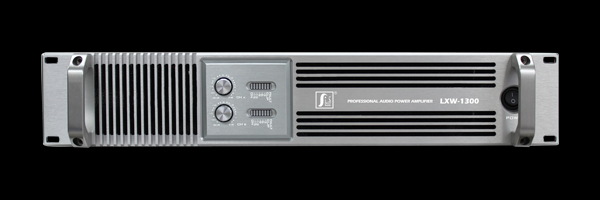

FLKS LXWClass D Amplifier

时间:2019-6-26 13:40:17



Story of FLKS LXW Series: LXW is the abbreviation of Li Xian Wen, who is one of out founders. He works hard and is rigorous and responsible in his position. In daily life, he has the sense of humor, smiley face, and most of all, the kindness.

       FLKS LXW Series is of Class D aiming at the market of common commercial and  the entertainment venues,which has its R&D process from 21st Dec in 2014 to 2nd July in 2015, along with various devastating experiences and field applications. It is planned to be lunched to the market in the Pro Light+Sound Exhibition in Guangzhou in 2016. It composites the advantages of transformer and Class D circuitry, the high-speed power supply guarantees the wide range without distortion, the developed Class D circuitry guarantees the fastest slew rate and the minimum signal lost so as to present the original and the high fidelity.It has an excellent performance of the human voice and music, especially the microphone’s performance of human voice which gives the singer an easy and delightful experience.

     Owing to the high slew rate of FLKS LXW Series, the heating value is low. It greatly solves the troubles result from the heating dissipation, and allows it to work at a heavy load for a long time.


Series LXW LXW-400 LXW-500 LXW-600 LXW-800 LXW-1000 LXW-1300
Rated Power(8ohm) 2×400W 2×500W 2×600W 2×800W 2×1000W 2×1300W
Rated Power(4ohm) 2×640W 2×800W 2×960W 2×1280W 2×1600W 2×2080W
Rated Power(2ohm) 2×768W 2×960W 2×1152W 2×1536W 2×1920W 2×2496W
Rated Power(Bridged 8ohm)1120W1400W1680W2080W2600W3380W
Frequency Response 20Hz-20kHz:﹢0.3/-1.5dB(1W/8Ω)
THD+N 1W/8ohm(1kHz)≤0.1
Damping Factor 200:1kHz@8Ω
SNR≥93dB
Input Gain 20dB、23dB、26dB、29dB、32dB、35dB、38dB、41dB Optional
Input Impedance Balanced 20k ohm  Unbalanced 10k ohm
Supply Voltage AC~200-240V/50-60kHz
Product Size(W×D×H) 483×367×88mm
Packing Size(W×D×H) 570×455×114mm
Net/Gross Weight(KG) 13.8/15.4KG 14.5/16.1KG 15.6/17.2KG 16.2/17.6KG 16.8/18.2KG 17.6/19.0KG
