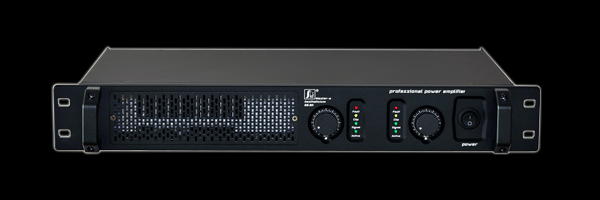

FLKS Aestheticism SeriesClass D Amplifier

时间:2019-6-26 13:37:18


Features:

Intensity power, sweet sound, reliable quality, high cost performance

Small size, light weight

High power, high efficiency, little heat, energy-saving

Overall protection against overload, overheat, short circuit, and has distortion limiter

Frosted surface aluminum alloy panel, the panel and box adopt the CNC laser cutting


Testing standard:

*ICT test

*High voltage test

*Grounding test

*Advanced shaking test

*Loaded 24 hours aging test

*The international audio standard-AP test


Aestheticism Series B0.6K B0.7K B0.8K
Rated Power(8ohm) 2×600W 2×700W 2×800W
Rated Power(4ohm) 2×980W 2×1130W 2×1330W
Rated Power(Bridge 8ohm) 1960W 2260W 2660W
Frequency Response 15Hz-30kHz(±1dB)
THD+N <0.1%
Slew Rate28V/μs
Damping Factor >240(1kHz,8Ω)
SNR 100dB
Input Sensitivity 0.775V
Input Impedance Balance 20k ohm Unbalance 10k ohm
Voltage Supply AC~200-240V/50-60kHz
Voltage Range AC~190-264V/50-60kHz
Input Connector Female & Male XLR
Output Connector Binding Post(Speakon)
Product Dimensions(W×D×H) 483×288×66mm
Packing Size(W×D×H) 550×340×100mm
Net/Gross Weight(KG) 6.2/7.1KG
