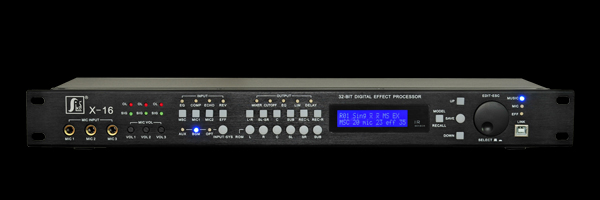

X16

Characteristics:

1. Adopts the 24Bit Data Bus and the 32Bit Float Audio DSP of the latest generation.

2.independent dual MIC input channels, every channel has 15 EQs and LF cut

3.independent dual channels exclusive record output, which can be set as the stereo output according to the users needs.

4. Audio optical fiber input

5. simple friendly use operational surface, with concise shortcut button, indication lights and LCD parameters window.

6. Six channel outputs: Main LEFT, main RIGHT, CENTER, SUB and STEREO LEFT/RIGHT with Independent mute

7. Manual/Automatic saving mode optional.

8. Indication of MIC input signal/Overload.

9. 15 EQs for MUSIC input channel, the Music stimulation is adjustable.

10. 10 EQs for main oupputs.

11. 7 EQs for CENTER and STEREO output.

12. 5 EQs for EFFECT

13.5 EQs for SUB output.

14. 3 levels of feedback restrain, optional on/off of this function

15. 8 operational modes for saving

16. Limit and delay function for MIC, main LEFT/RIGHT, CENTER, SUB and STEREO outputs.

17. Various slop adjustments for main LEFT/RIGHT, CENTER, SUB and STEREO outputs.

Performance Index:

Maximum input electrical level: 4V(RMS)

Maximum output electrical level: 4V(RMS)

MIC input sensitivity: 75mV(Out:4V)

MIC input signal indication electrical level: 35MV

MIC overload signal indication electrical level: 350MV

MUSIC input maximum value: 2V(RMS)

SNR: >88dB

Distortion: ≦0.05%

Input voltage: ～220V 50Hz

Operatoin environment:  temperature: +18℃～+40℃；Humidity: ≦80%（no condensing)

Dimensions(D×W×H)：485×187×56mm

Net weight: 3.4KG
