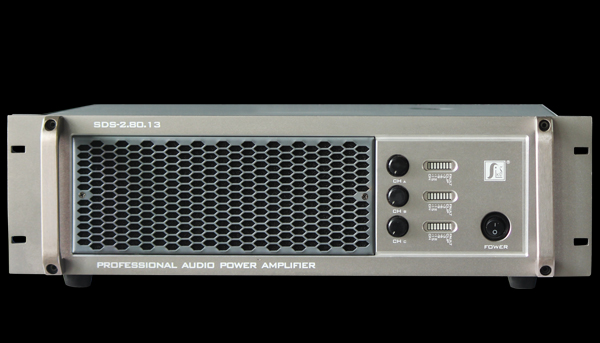

FLKS SDSAnalog Amplifier

时间：2019-6-26 12:50:01


FLKS Series SDS is named after our company’s Chinese Pin Yin, Sai De Sheng.
FLKS Series SDS is developed aiming at some provinces in China. The main range of power is 650W×3,800W×3,650W×2+1300W and 800×2+1300W, all are 8Ω.FLKS Series SDS is of high-and-mid end and it is mainly for KTV.
      FLKS Series SDS adopts the TD circuit and has the characteristics of high working efficiency, circuit output of wide dynamic, little heat and excellent timbre. It has the complete circuit protection includes the protection of overheat, overload, short circuit, clip and on/off shock. There is independent power supply and output for every channel, sufficient allowance designed for power supply so as to work freely at low or high sound pressure.
     FLKS Series SDS is suitable for large-scale KTV, clubs and bars, etc.


Models of SDS

SDS-3.65

SDS-3.80

SDS-2.65.13

SDS-2.80.13

Rated Power（8ohm）

3×650W

3×800W

2×650W+1300W

2×800W+1300W

Rated Power（4ohm）

3×1040W

3×1280W

2×1040W+2080W

2×1280W+2080W

Frequency Response

20Hz-20kHz:±0.1/0.3dB(1W/8ohm)

Harmonic Distortion

<0.05@1040W

<0.05@1280W

<0.05@1040W/

<0.05@2080W

<0.05@1280W/

<0.05@2080W

Intermodulation Distortion

<0.01@650W

Into(60Hz&7kHz)

<0.01@800W

Into(60Hz&7kHz)

<0.01@650W

Into(60Hz&7kHz)

 <0.01@1300W

Into(60Hz&7kHz)

   <0.01@800W

Into(60Hz&7kHz)

 <0.01@1300W

Into(60Hz&7kHz)

Damping Factor

350:1kHz@8Ω

SNR

>105dB

Voltage Conversion Rate

70×standard

Input Gain

20dB、23dB、26dB、29dB、32dB、35dB、38dB、41dB Optional

Input Impedance

20K Ohm，balanced  10K Ohm，unbalanced

Supply Voltage

AC~200-240V /50-60Hz

Packing Size（W×D×H)

570×550×180mm

Net/Gross Weight

31.8KG/33.4KG

33.3KG/35.0KG

33.3KG/35.0KG

34.8KG/36.5KG
