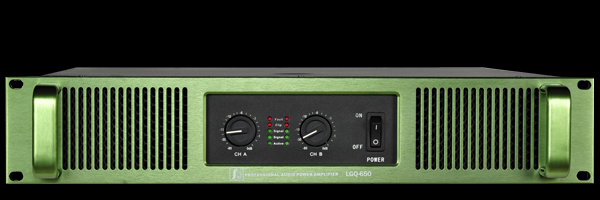

FLKS LGQAnalog Amplifier
时间:2019-6-26 12:47:34
The story of FLKS Series LGQ: LGQ is the abbreviation of our company founder Leung Guoqi. He is outgoing and generous, and has been in charge of goods delivering. In a way, we can say he uses his truck to bring up an increasing growing factory.
FLKS Series LGQ is positioned on the high-and-mid end. It has the figures of accurate resolution of sound and crystal clear and high frequency response, the low frequency response is not vague. In a word, the sound signal coming out from Series LGQ has a very high resolution. That owns to the practice that we put the sound at the first place. Thus the professional audio power amp of FLKS is always the choices of professional project. In addition to these, its advantages of high power output unit which makes its volume and weight more applicable for using requirements, it has excellent design of manufacturing process, such as the cooling technique, the professional wavy cooling aluminum which makes it a bigger cooling volume so as to have a fast heat dissipation. The inside dual ball bearing cooling fans coordinate with the unique ventilated structure to guarantee the same cooling effect, with protection circuits of various functions, these make its operation more reliable.
Series LGQ | LGQ-350 | LGQ-450 | LGQ-550 | LGQ-650 | LGQ-800 | LGQ-1000 | LGQ-1300 | |
Rated Power(8ohm) | 2×350W | 2×450W | 2×550W | 2×650W | 2×800W | 2×1000W | 2×1300W | |
Rated Power(4ohm) | 2×560W | 2×720W | 2×800W | 2×1040W | 2×1280W | 2×1600W | 2×2080W | |
Rated Power(2ohm) | 2×672W | 2×864W | 2×1056W | 2×1248W | 2×1536W | 2×1920W | 2×2496W | |
Rated Power (Bridge 8ohm) | 910W | 1170W | 1430W | 1690W | 2080W | 2600W | 3380W | |
Rated Power (Bridge 4ohm) | 1092W | 1404W | 1716W | 2028W | 2496W | 3120W | 4056W | |
Frequency Response | 20Hz-20kHz:±1.5dB(1W/8Ω) | |||||||
THD+N | <0.05@560W | <0.05@720W | <0.05@800W | <0.05@1040W | <0.05@1280W | <0.05@1600W | <0.05@2080W | |
Intermodualation Distortion | <0.01@3500W Into(60Hz@7kHz) | <0.01@450W Into(60Hz@7kHz) | <0.01@550W Into(60Hz@7kHz) | <0.01@650W Into(60Hz@7kHz) | <0.01@800W Into(60Hz@7kHz) | <0.01@1000W Into(60Hz@7kHz) | <0.01@1300W Into(60Hz@7kHz) | |
Damping Factor | 350:1kHz@8Ω | |||||||
SNR | >105dB | |||||||
Slew Rate | 70×standard | |||||||
Input Gain | 20dB、23dB、26dB、29dB、32dB、35dB、38dB、41dB Optional | |||||||
Input Impedance | Balance 20k ohm Unbalance 10k ohm | |||||||
Power Supply | AC~200-240V/50-60kHz | |||||||
Packing Size | 570×570×140mm | 570×570×180mm | ||||||
Net/Gross Weight | 21.7/22.4KG | 23.2/24.9KG | 24.2/25.9KG | 25.2/26.9KG | 28.8/30.7KG | 31.5/32.6KG | 33.3/35.1KG |
