FLKS HGYAnalog Amplifier

时间：2019-6-26 12:42:26


Story of FLKS Series HGY:HGY is the abbreviation of He Guangyang, who is one of the founders of our company, he also had the experience of working for continuos 60h. He has high working efficiency and various skills which makes him the backbone of our company.

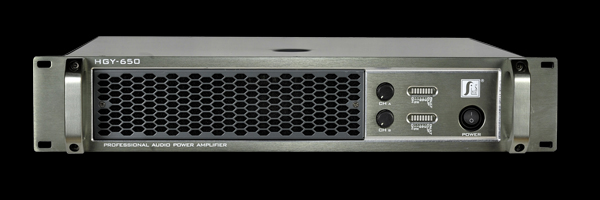

   The characteristics of FLKS Series HGY are the elegant and refined appearance with metal texture and the technical image. The whole machine lowers the temperature using opening type ventilation from front to back to reduce windage and enhance the ventilation quantity. It prevent dust by employing the dustproof sponge to increase the stability. The back panel adopts the hole opening with large area for convenient cooling. Signal in/out
jacks, power output /input socket and all the functional switches employed the high-end components, the grounding is firm and layout is reasonable and friendly use. It has various protection and selective components, the manufacture process is of strictly test and age.
   FLKS Series HGY is suitable for performance,bars, etc

Series HGY
HGY-150
HGY-250
HGY-350
HGY-450
HGY-550
Rate Power（8ohm）
2×150W
2×250W
2×350W
2×450W
2×550W
Rated Power（4ohm）
2×240W
2×400W
2×560W
2×720W
2×880W
Rated Power(Bridge 8ohm)
390W
650W
910W
1170W
1430W
Frequency Response
20Hz-20kHz:±0.1/0.3dB(1W/8ohm)
Harmonic Distortion
<0.05@240W
<0.05@400W
<0.05@560W
<0.05@720W
<0.05@880W
Intermodulation Distortion
<0.01@150W
Into(60Hz&7kHz)
<0.01@250W
Into(60Hz&7kHz)
<0.01@350W
Into(60Hz&7kHz)
<0.01@450W
Into(60Hz&7kHz)
<0.01@550W
Into(60Hz&7kHz)
Damping Factor
350:1kHz@8Ω
SNR
>105dB
Slew Rate
70×standard
Input gain
20dB、23dB、26dB、29dB、32dB、35dB、38dB、41dB Optional
Input Impedance
Balanced 20K Ohm  Unbalanced 10K Ohm
Voltage
AC~200-240V /50-60Hz
Packing Size（W×D×H)
570×570×140mm
Net/Gross Weight
12.6KG/
14.3KG
14.5KG/
16.2KG
16.2KG/
17.9KG
17.0KG/
18.7KG
18.2KG/
19.7KG

　

Series HGY

HGY-650

HGY-800

HGY-1000

HGY-1300

Rate Power（8ohm）

2×650W

2×800W

2×1000W

2×1300W

Rate Power（4ohm）

2×1040W

2×1280W

2×1600W

2×2080W

Rate Power(Bridged8ohm)

1690W

2080W

2600W

3380W

Frequency Response

 20Hz-20kHz:+0.1/0.3dB(1W/8ohm) 　 　 　

Harmonic Distortion

<0.05@1040W

<0.05@1280W

<0.05@1600W

<0.05@2080W

Intermodulation Distortion

<0.01@650W

Into(60Hz&7kHz)

<0.01@800W

Into(60Hz&7kHz)

<0.01@1000W

Into(60Hz&7kHz)

<0.01@1300W

Into(60Hz&7kHz)

Damping Factor

 350:1kHz@8Ω

SNR

>105dB

　

Slew Rate

70×standard

　

Input Gain

20dB、23dB、26dB、29dB、32dB、35dB、38dB、41dB Optional

　

Input Impedance

                               Balanced 20K Ohm  Unbalanced 10K Ohm
Voltage                                                   AC~200-240V /50-60Hz

Packing Size（W×D×H)

　

 570×550×140mm                                      570×550×180mm

Net/Gross Weight

19.0KG/20.7KG

29.8KG/31.7KG

32.5KG/33.6KG

34.3KG/36.1KG
